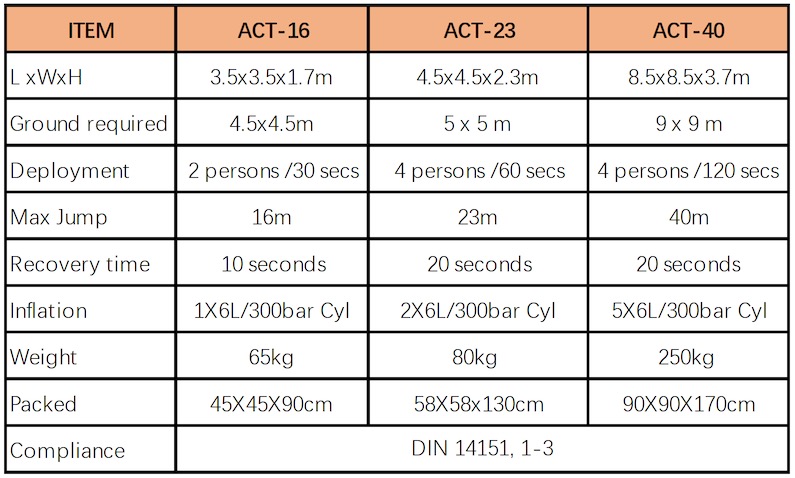

ITEM | ACT-16 | ACT-23 | ACT-40 |
L xWxH | 3.5x3.5x1.7m | 4.5x4.5x2.3m | 8.5x8.5x3.7m |
Ground required | 4.5x4.5m | 5 x 5 m | 9 x 9 m |
Deployment | 2 persons /30 secs | 4 persons /60 secs | 4 persons /120 secs |
Max Jump | 16m | 23m | 40m |
Recovery time | 10 seconds | 20 seconds | 20 seconds |
Inflation | 1X6L/300bar Cyl | 2X6L/300bar Cyl | 5X6L/300bar Cyl |
Weight | 65kg | 80kg | 250kg |
Packed | 45X45X90cm | 58X58x130cm | 90X90X170cm |
Compliance | DIN 14151, 1-3 |
1. Cushion could be installed by Compressed Air Cylinder. Also you could use Electric or Motor pump if you’d like.
2. Easy to install and to carry while operation.
3. Made of special polyester fabric
4. Our Safety Air Cushion produced Waterproof, fire-retardant, anti-acid, highly tear and abrasion resistant material, guarantees an excellent level of reliability and strength.
The Rescue Cushion may be placed on almost any surface including gravel and kerbstones, although very sharp objects and glowing embers should be avoided

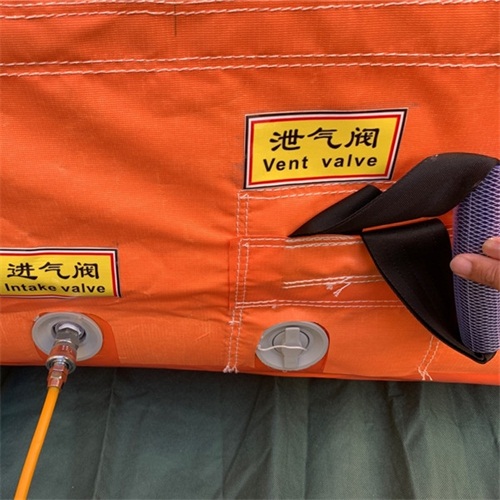

very stable, almost no bounce-back,always deforms towards the centre, recovery time just a few seconds,easily transported whether packed or inflated,extended service periods without topping-up, relief valves are fitted to prevent over pressure
Carrying points on all four sides enable ,even the largest inflated cushion to be easily moved and finely positioned.
After Use,Open the deflate valves. Fold and roll the unit back into its valise.
